Overview

ABB Electric Locomotives, including the WAG-5, WAP-7, and WAG-9 classes, represent some of the most reliable and powerful electric locomotives operating on Indian Railways. Developed using advanced traction technology and robust engineering, these locomotives are designed to deliver superior performance for both passenger and freight operations across electrified railway networks.

The WAG-5 is a proven and dependable freight locomotive widely used for heavy haul operations, while the WAP-7 and WAG-9 are modern three-phase electric locomotives developed with ABB technology, offering higher power output, improved energy efficiency, regenerative braking, and lower maintenance requirements. Their advanced propulsion systems ensure smooth acceleration, enhanced traction, and reliable operation under demanding service conditions.

Sl.NoDescription of ItemsPL.NO.DRAWING NO.
1Air Filter ASM(Inertia Air Filter)294880351209-11-135-121, 1209-11-135-122, 1209-11-135-123
2Cab Side Door29170916-
3Machine Room Door29170928-
4Cab Side Window29170280-
5Windscreen291702911209-08.130-263
6Resistance Harmonic Filter29650033-
7Gear Case290300181209-01-013-014
8Wheel Set Guide290500171209-01-115-004
9Torque Support291003801209-01-218-003
10Metallic Pipe For Oil Cooling29230044-
11Moter Suspension Tube291002881209-01-012-018
12Cubicle HB1 & HB2 electric panel--
13Cubicle SB1 & SB2 electric panel-1209-15.143-067, 1209-15.143-069 & 1209-15.143-070

Product Range

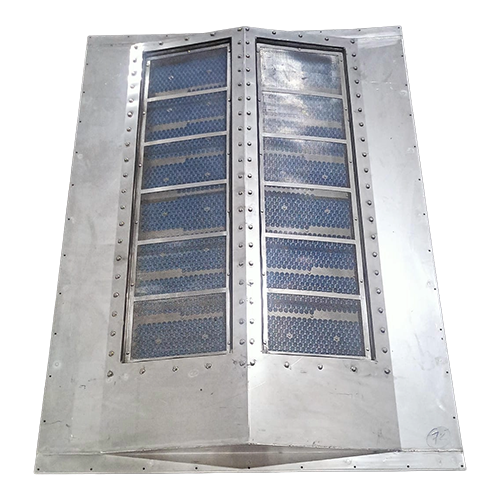

Air Filter ASM

Air Filter ASM

29488035

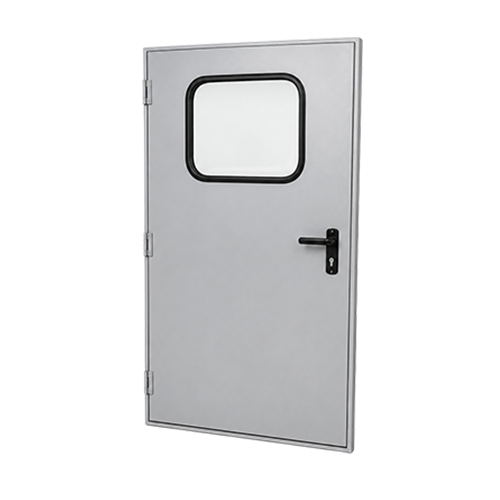

Cab Side Door

Cab Side Door

29170916

Machine Room Door

Machine Room Door

29170928

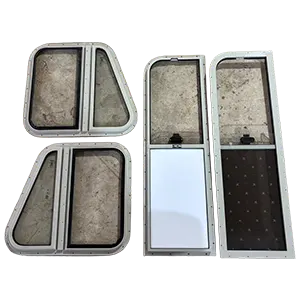

Cab Side Window

Cab Side Window

29170280

Windscreen

Windscreen

29170291

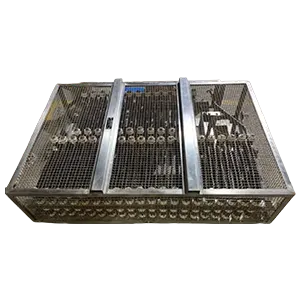

Resistance Harmonic Filter

Resistance Harmonic Filter

29650033

Gear Case

Gear Case

29030018

Wheel Set Guide

Wheel Set Guide

29050017

Torque Support

Torque Support

29100380

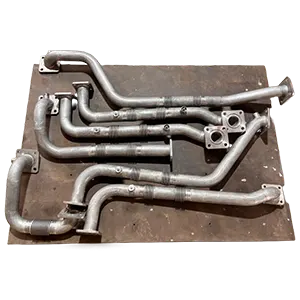

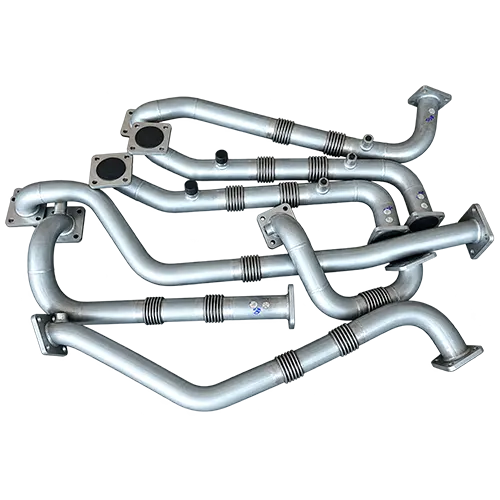

Metallic Pipe For Oil Cooling

Metallic Pipe For Oil Cooling

29230044

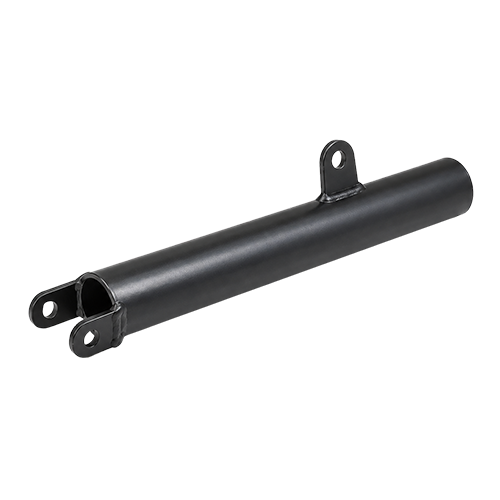

Moter Suspension Tube

Moter Suspension Tube

29100288

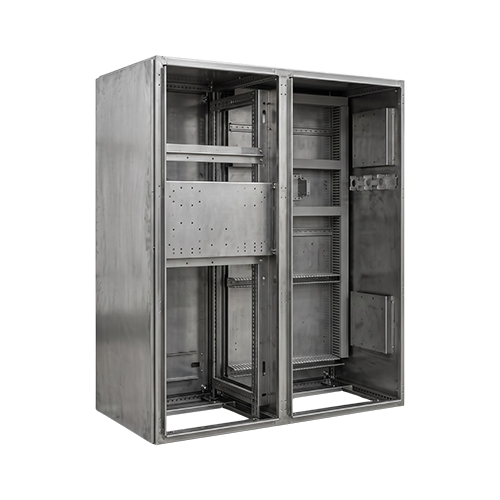

Cubicle HB1 & HB2 electric panel

Cubicle HB1 & HB2 electric panel

Cubicle SB1 & SB2 electric panel

Cubicle SB1 & SB2 electric panel

Key Features

  • High-power electric traction system for superior performance
  • Three-phase propulsion technology in WAP-7 and WAG-9 locomotives
  • Regenerative braking for improved energy efficiency
  • High reliability with reduced maintenance requirements
  • Excellent traction and hauling capability for heavy loads
  • Suitable for both passenger and freight operations
  • Designed for continuous operation under diverse environmental conditions
  • Advanced microprocessor-based control and monitoring systems in modern variants
