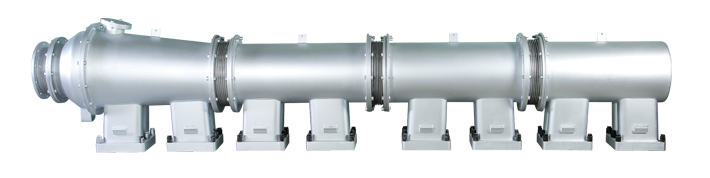

GM Locomotive Manifold Assembly

GM Locomotive Manifold

Sl.No Description of items GM / EMD PT. NO. / DRG. NO.
1 Exhaust Manifold Assembly 40071914
2 Exhaust Chamber 9316231 / 40121220
3 Exhaust Chamber 9316232 / 40121219
4 Exhaust Chamber 9316233 / 40121218
5 Exhaust Chamber 10624476 / 40121217
6 Adapter & Screen Assembly 9557143
7 Screen 9526330
8 Expansion Joint Assembly 8408987
9 Expansion Joint Assembly 8408985
10 Spacer Bolt Assembly 40055467
11 Gasket 9571663
12 Gasket 40026936
13 Gasket 40026937
14 Gasket 40026938
15 Gasket 40026939
16 Gasket 40055466
17 Exhanst Duct Assembly 9529830

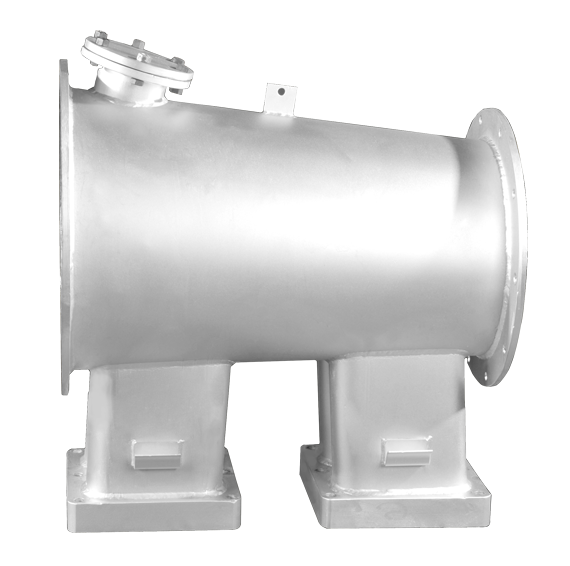

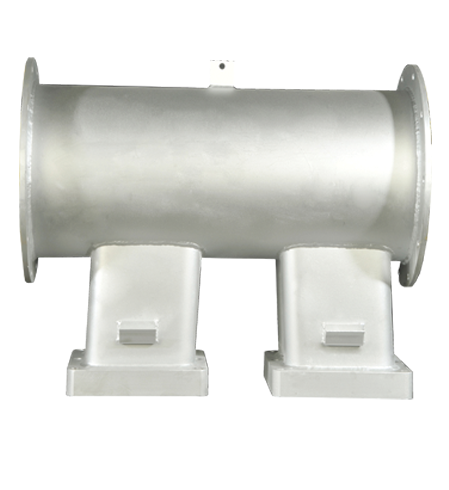

  • Exhaust Chamber 9316231 / 40121220

    Exhaust Chamber 9316231 / 40121220

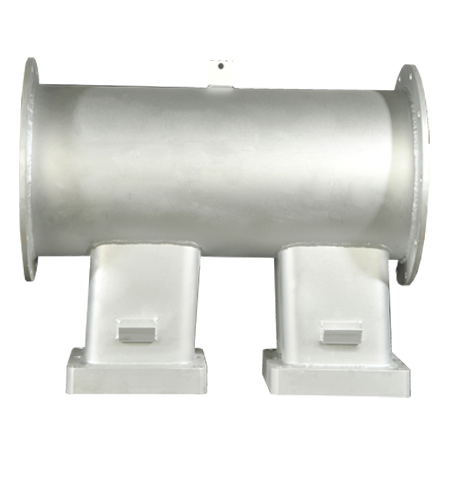

  • Exhaust Chamber 9316232 / 40121219

    Exhaust Chamber 9316232 / 40121219

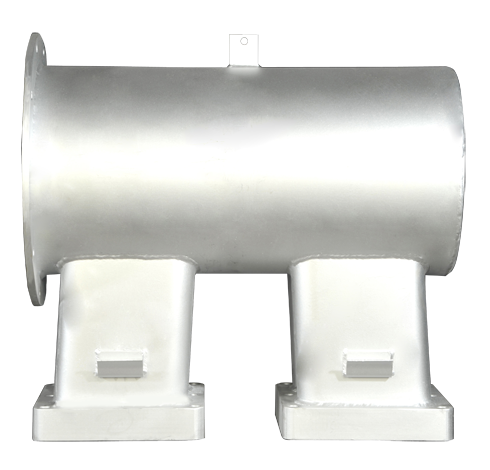

  • Exhaust Chamber 9316233 / 40121218

    Exhaust Chamber 9316233 / 40121218

  • Exhaust Chamber 10624476 / 40121217

    Exhaust Chamber 10624476 / 40121217

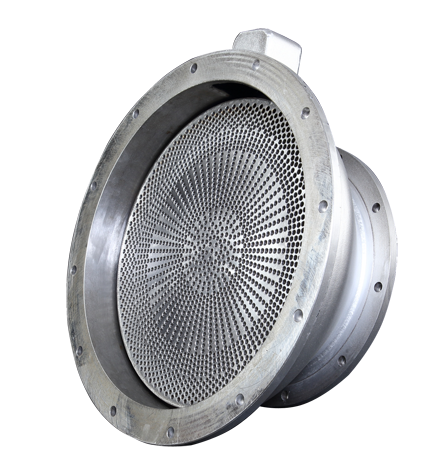

  • Adapter & Screen Assembly 9557143

    Adapter & Screen Assembly 9557143

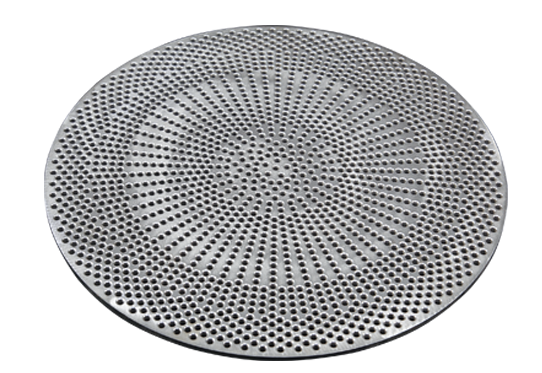

  • Screen 9526330

    Screen
    9526330

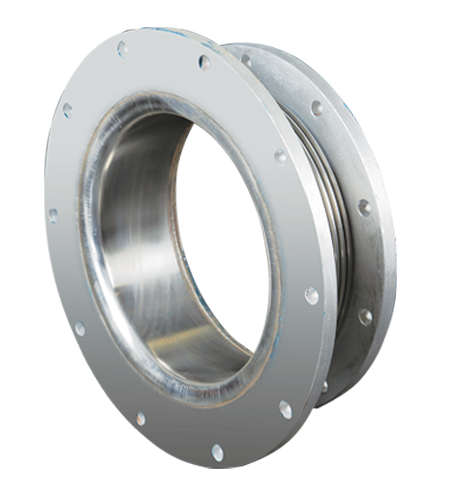

  • Expansion Join Assembly 8408987

    Expansion Joint Assembly 8408987

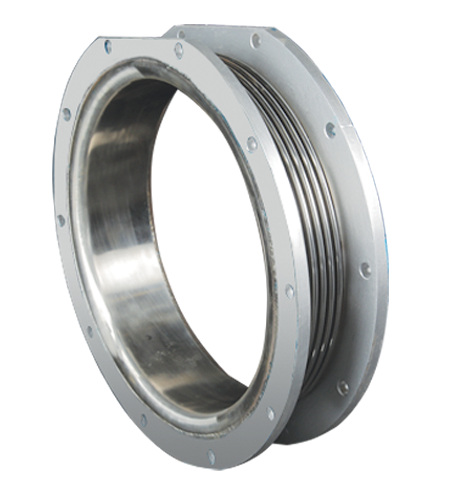

  • Expansion Join Assembly 8408985

    Expansion Joint Assembly 8408985

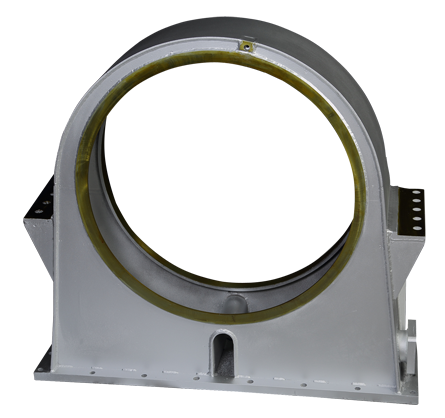

  • Exhanst Duct Assembly 9529830

    Exhanst Duct Assembly 9529830

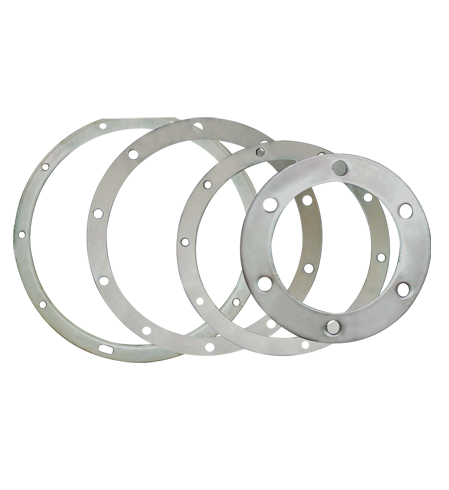

  • Gasket 9571663 / 40026936/ 40026937 40026938/ 40026939 / 40055466

    Gasket 9571663 / 40026936/ 40026937 40026938/ 40026939 / 40055466
